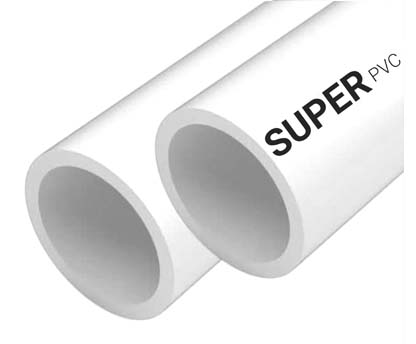

Super PVC Pipes are Made of Durable Plastic Raw Material That Does Not Corrode/ Crack Easily and last for Long Time.

• Super Plumbing Pipes are Used for Plumbing Purposes in Residential & Commertial Buildings.
• It is Ideally Suited for Looping at Eash Floor Level, Outdoor Installations and Pipelines for Cold Water Distribution
• Super PVC Pipes are an Excellent Choice for Plumbing Requiring High Tensile and Impact Strength
• Best Suited for Carrying Portable Water as It has Zero Maintanance Compared to Metal Pipes
• It is Easy to Transport as PVC Pipes are Light in Weight and are Easy to Install
• The Smooth Inner Surface Prevents The Deposition of Waste Material.
• Super PVC Pipes are Manufactured Under Strict Quality Control Standards Which Makes the Product Affordable and Durable.
• Pipes are Available in 40 & 80 Series, With a Standard Lengths of 3 Mtr & 6 Mtr With Plain Ends / Threaded Ends Option as Per the Requirements.

Features/ Advantages

• Light In Weight
• Maintenance Free
• Corrosion Free
• Best For Carrying Portable Water
• UV Stabilized
• Self Extinguishing
• Economical
• Easy Transportation/ Installation
• Takes Less Time to Thread.

Schedule 40 (Plain Ends)

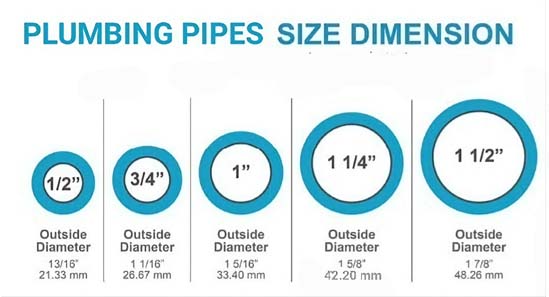

NOMINAL SIZE(INCH)	NOMINAL SIZE(MM)	NOMINAL O.D/MM	WALL THICKNESS (MM)	Std.Pkg. 3mtr PIPES	Std.Pkg. 6mtr PIPES
½	15	21.33(±0.10)	2.77 (+0.51)	40	20
¾	20	26.67(±0.10)	2.87 (+0.51)	30	15
1	25	33.40(±0.13)	3.38 (+0.51)	20	10
1 ¼	32	42.20 (±0.13)	3.56 (+0.51)	10	10
1 ½	40	48.26(±0.15)	3.68 (+0.51)	10	10

Schedule 80 (Plain Ends)

NOMINAL SIZE(INCH)	NOMINAL SIZE(MM)	NOMINAL O.D/MM	WALL THICKNESS (MM)	Std.Pkg. 3mtr PIPES	Std.Pkg. 6mtr PIPES
½	15	21.33(±0.10)	3.73 (+0.51)	40	20
¾	20	26.67(±0.10)	3.91 (+0.51)	30	15
1	25	33.40(±0.13)	4.55 (+0.53)	20	10
1 ¼	32	42.20 (±0.13)	4.85 (+0.58)	10	10
1 ½	40	48.26(±0.15)	5.08 (+0.61)	10	10

Schedule 80 (Threaded Ends)

NOMINAL SIZE(INCH)	NOMINAL SIZE(MM)	NOMINAL O.D/MM	WALL THICKNESS (MM)	Std.Pkg. 3mtr PIPES	Std.Pkg. 6mtr PIPES
½	15	21.33(±0.10)	3.73 (+0.51)	40	20
¾	20	26.67(±0.10)	3.91 (+0.51)	30	15
1	25	33.40(±0.13)	4.55 (+0.53)	20	10
1 ¼	32	42.20(±0.13)	4.85 (+0.58)	10	10
1 ½	40	48.26(±0.15)	5.08 (+0.61)	10	10
