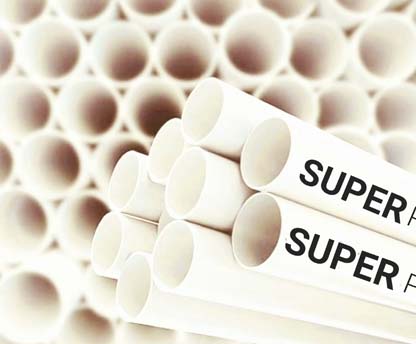

Pressure Pipes

• Super Pvc Building/agricultural Pipes Resist Stringent And Rigorous On-site Conditions In     Buildings/ Agricultural Fields.
• Pvc Pipes Ensure Zero Leakage And Easy Installation.
• Super Pvc Pipes Are Rigid Without Being Brittle And Are Cheaper When Compared With     Other Pipe Material.
• Despite Being Superior To Conventional Pipes, Super Pvc Pipes Are Very Light In Weight     And Last Much Longer Than Older Piping Systems Offering A Great Economy In Handling ,     Transportation, Installation And Replacement.

Features/ Advantages

• Chemical Resistance
• Spark Retardant
• Corrosion Resistance
• Light Weight
• Long Service Life
• Cost Effective
• Easy Installation

Applications

• Portable Water Supply
• Bore Well Casing
• Chemical Disposal
• Agricultural Irrigation
• Swimming Pools
• Firefighting Mains
• Industrial Process Lines
• Rain Water Disposal

Dimentions / Sizes of Pressure Pipes (3 Mtrs)

O.D IN MM	NOMINAL SIZE ( INCH)	CLASS  1 (KG./CM ²)	CLASS 2 (KG./CM ²)	CLASS 3 (KG./CM ²)	CLASS 4 (KG./CM²)	CLASS 5 (KG./CM ²)
25	¾”	----	----	----	8	10
32	1”	----	----	6	----	10
40	1 ¼”	----	----	6	----	10
50	1 ½”	----	----	6	----	10
63	2”	----	4	6	----	10

*Pipes with 3 mtr length are one side plain socketed.

Dimentions / Sizes of Pressure Pipes (6 Mtrs)

O.D IN MM	NOMINAL SIZE ( INCH)	CLASS  1 (KG./CM ²)	CLASS 2 (KG./CM ²)	CLASS 3 (KG./CM ²)	CLASS 4 (KG./CM²)	CLASS 5 (KG./CM ²)
25	¾”	----	----	----	8	10
32	1”	----	----	6	----	10
40	1 ¼”	----	----	6	----	10
50	1 ½”	----	----	6	----	10
63	2”	----	4	6	----	10
75	2 ½”	----	4	6	----	10
90	3”	2.5	4	6	----	10
110	4”	2.5	4	6	----	10

*Colours- White / Ivory .
